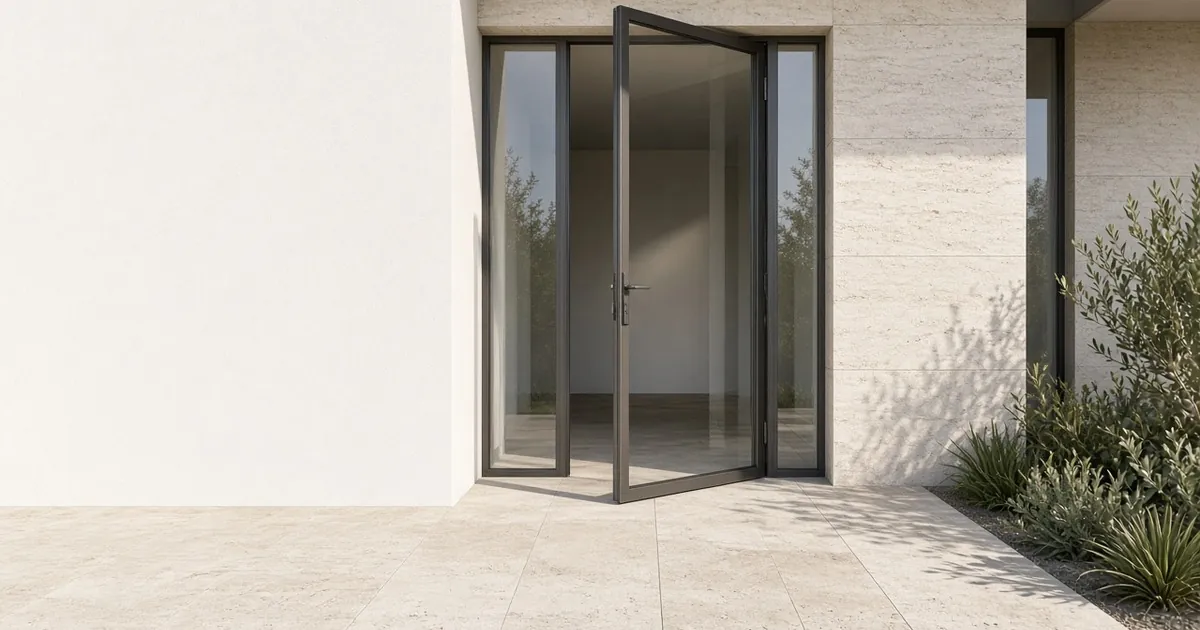

Pivot Glass Doors in Dubai: Slim-Frame Entrances for Villas and Offices
Glass doors that rotate around a pivot axis for a distinctive entrance. Glass weight, opening clearance and hardware are planned as one assembly.
A pivot glass door turns on an axis fixed at the top and bottom of the leaf, not on hinges at its side. It suits wide entrances to internal rooms, reception spaces and statement openings. Both sides of the opening need swing clearance, and the floor and head fixings are checked first. SEG surveys the opening for free.
A pivot glass door turns around an axis supported at the top and bottom, rather than conventional hinges fixed along the side of the leaf. This creates a different opening movement and can give an entrance a distinctive architectural presence.
It can suit a villa entrance to an internal room, a reception space or a statement partition in Dubai. SEG reviews the glass, slim aluminium profiles, pivot hardware and surrounding construction together. The finished door should feel comfortable to use, not simply look impressive in an elevation.
What it gives you
- A pivoting movement for a distinctive glass entrance
- Pivot position selected around the opening and usable passage
- Glass and slim framing coordinated with adjacent panels
- Hardware matched to leaf dimensions and weight
- Closing behaviour and handles considered for everyday use
How it works
The pivot location changes how the leaf moves through the room. An offset axis means a smaller part of the door swings to the opposite side of the opening, so both sides need clearance. Door width alone does not describe the available passage when the leaf is open.
The pivot mechanism, glass processing and supporting frame must be compatible. Finished floor levels matter, as do the fixing conditions above and below the door. Depending on the hardware, options may include controlled closing or hold-open positions; these should be specified rather than assumed.
Before ordering, review the sweep against furniture, walls and pedestrian routes. If the door is external, part of an escape route or required to meet an acoustic or fire specification, the complete assembly needs a separate assessment. An interior pivot detail should not be treated as a substitute for a specified entrance system.
Pivot doors for UAE villa entrances
A pivot door makes a strong first impression. In a UAE villa it is often used for a large entrance opening, the doorway from a hall into a majlis or a feature room, or a reception space in an office.
Large leaves are heavy. The glass, the profile and the pivot hardware have to be matched to the weight, and the floor and the structure above have to be able to take the fixings. We check both before we quote.
Sun matters on an entrance. A leaf that takes direct afternoon sun is something to mention when you enquire, because it affects the glass we discuss. SEG's slimline range is designed for UAE heat and humidity. SEG does not publish wind or weather performance figures for pivot doors.
Is the door inside or outside? SEG supplies pivot doors for exterior villa entrances as well as interior openings. Tell us which it is. We check the exposure of the opening at the free site survey.
Because the leaf swings on an offset axis, part of it moves to each side of the opening. Draw the full sweep on the plan and check it against furniture, walls and walking routes before you decide.
Villa entrances in any of the seven emirates are covered, with a free survey arranged within 24 hours.
Pivot vs slim casement vs single sliding
| Pivot door | Slim casement door | Single sliding door | |
|---|---|---|---|
| How it opens | Turns on a top and bottom pivot axis, often set in from the edge | Swings on side hinges | Slides sideways along a track |
| Space to swing | Clearance on both sides of the opening, because part of the leaf swings each way | A clear swing area on one side | No swing. Clear wall beside the opening instead. |
| Look | A distinctive, architectural movement and a large leaf | A familiar door in a narrow frame | One pane sliding on a track |
| Suits | Entrances and statement openings | Offices, villa rooms, internal partitions | Studies, dressing areas, compact rooms |
Specification
| Detail | Project specification |
|---|---|
| Movement | Rotation around a defined top-and-bottom pivot axis |
| Pivot position | Chosen for leaf geometry, clear passage and swing space |
| Door construction | Glass and profile build-up compatible with the hardware |
| Support | Top and bottom fixing conditions verified |
| Operation options | Closing control, hold-open and locking as specified |
| Site coordination | Finished floors, door sweep and adjoining panels checked |
Door weight, dimensions and required functions determine the hardware selection. External applications need supporting system data.
Pivot Glass Doors FAQs
Practical answers to help you plan your project.
What is a pivot door used for?
A pivot door is used where the opening deserves a feature: a villa entrance to an internal room, a reception space or a statement partition. It turns on a pivot axis at the top and bottom of the leaf, which gives a different movement and presence from a side-hinged door.
What are the disadvantages of a pivot door?
It needs swing clearance on both sides of the opening. The leaf is heavy, so the hardware, floor and structure must suit it. For an outside door, we check the exposure of the opening at the survey. The floor level and finish need coordinating at the pivot.
Pivot door or casement door: which is better for a villa entrance?
Neither is better in every case. A pivot door gives a wide, striking entrance and needs clearance on both sides. A slim casement door is a familiar side-hinged door and suits standard openings. We recommend after measuring the opening and the space around it.
How much space does a pivot door need to swing?
It depends on the leaf width and where the pivot sits. An offset pivot swings part of the leaf into each side of the opening, so both sides need to be clear. The drawing should show the whole sweep against walls, furniture and walking routes.
What affects the price of a pivot glass door?
Glass type, size, hardware and installation. The pivot hardware, leaf size and weight, finish and the floor and head fixing conditions drive the quote. We quote in writing after a free site survey.
Can a pivot glass door close automatically?
Controlled or self-closing operation may be available with suitable hardware. The mechanism needs to be selected for the door weight, size and desired operating behaviour.
How is a pivot door different from a hinged door?
A conventional hinged door turns from hinges at its side. A pivot door rotates around an axis supported at the top and bottom, often set in from the edge. This changes the swing and usable opening.
